33' Custom-built Aluminum Trawler

SOLD

  • Year: 2008
  • Current Price: US$ 55,000 $39,000
  • Located in Manitowoc, WI
  • Hull Material: Aluminum
  • Engine/Fuel Type: Single diesel

Additional Specs, Equipment and Information:

Dimensions
LOA: 32 ft 10 in
Beam: 8 ft 0 in
Maximum Draft: 2 ft 0 in
Displacement: 5600 lbs

Engine
2008 Yanmar 50 hp
Engine Type: Inboard Direct Drive
Engine/Fuel Type: Diesel
Engine Hours: 75

Tanks
Fuel Tanks: (25 Gallons)

Features

  • Nine-foot long cockpit protected by deck house and side deck coaming three foot high. Cockpit is self-draining
  • Nine-foot long deck house with 360-degree visibility and 76 inches of headroom
  • Nine-foot long forward cabin
  • Eight-foot beam suited to highway trailing, winter storage and selected cruising grounds
  • 18 foot mast is fitted forward of deckhouse and lowers onto deckhouse top. Sufficient sail can be carried for off the wind sailing.

Construction details

  • Welded Aluminum construction using 5086 aluminum side plates 3/16”, bottom plates ¼”, Deck house is fully welded using
    3/16” 5086
  • Scantlings and plating designed to meet requirements of the American Bureau of Shipping
  • Aluminum construction has advantage of being ecologically friendly
  • Aluminum has strength and lightweight ideal in giving boat both excellent fuel efficiency and minimal wave making
  • Boat can have an open plan or complete with built in furniture
  • Designed and built by professionals of repute.

Speed detail

  • Max 13.0 knots @ 2900 RPM 48 SHP fuel 3 G.P.H
  • 11.0 knots @ 2700 RPM 38 SHP fuel 2 G.P.H.
  • 8.0 Knots @ 2000 RPM 16 SHP fuel 1G.P.H
  • 7.0 Knots @ 1600 RPM 9 SHP fuel ½ GPH
33 Custom Built Aluminum 2008 side view at cruise aft view at cruise painted aluminum hull bow view stern view, full keel, protected prop side windows bow cleats hatch to cabin mast folded down, hand-rails each side double door entrance to cabin, fuel tank between doors welded aluminum fuel tank large cockpit interior helm helm with gauges and rudder steering helm with great visibility port side helm and mid-cabin area looking aft from helm; engine just forward of aft window looking aft from mid-cabin engine mounted into floor of mid-cabin Yanmar 50 hp diesel side view of engine forward cabin interior bow area side wall of forward cabin starboard aft view of forward cabin port aft view of forward cabin forward cabin looking up at hatch at dock with 2nd prototype cruising with 2nd prototype bow view 2015 new bottom paint 2015 new bottom paint 2015 new bottom paint
  • 33 Custom Built Aluminum 2008

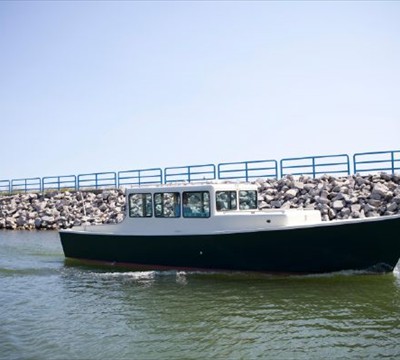

  • side view at cruise

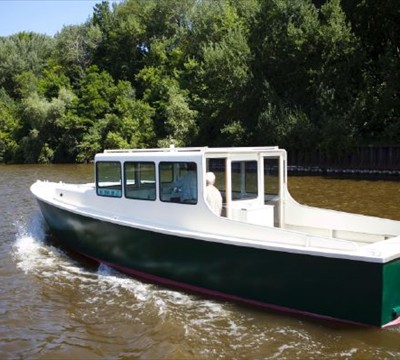

  • aft view at cruise
  • painted aluminum hull

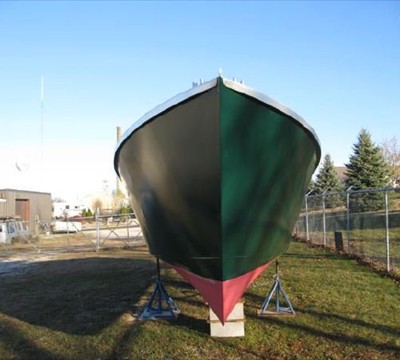

  • bow view
  • stern view, full keel, protected prop

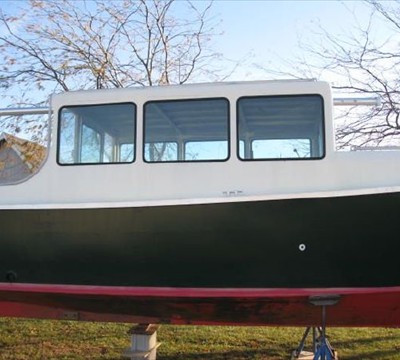

  • side windows

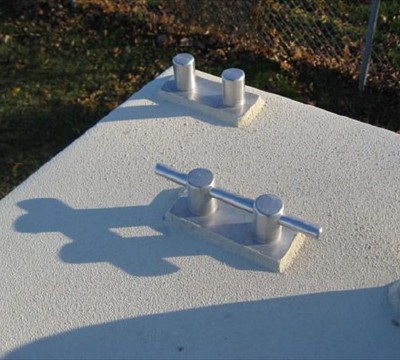

  • bow cleats
  • hatch to cabin

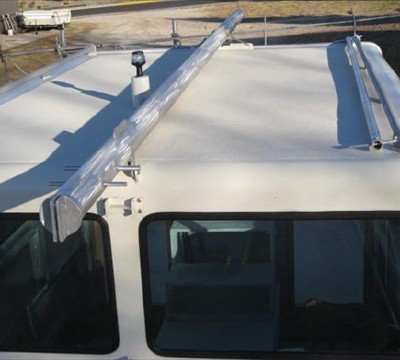

  • mast folded down, hand-rails each side

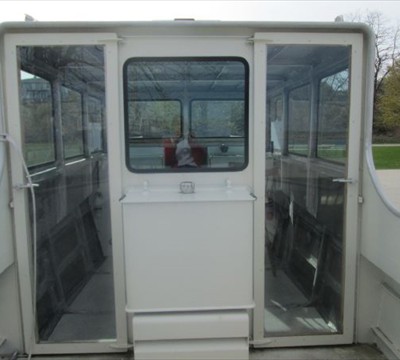

  • double door entrance to cabin, fuel tank between doors

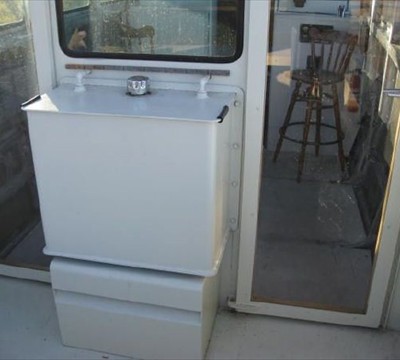

  • welded aluminum fuel tank

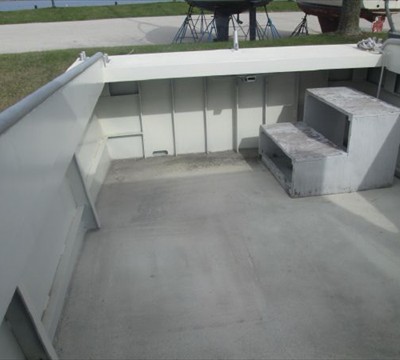

  • large cockpit
  • interior helm

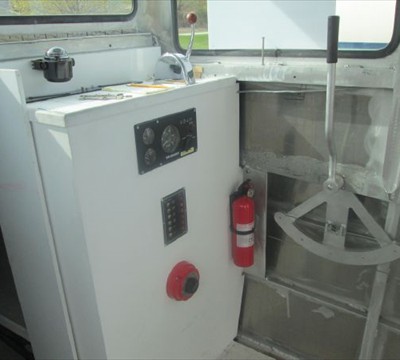

  • helm with gauges and rudder steering

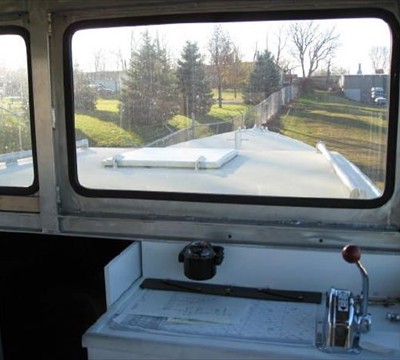

  • helm with great visibility

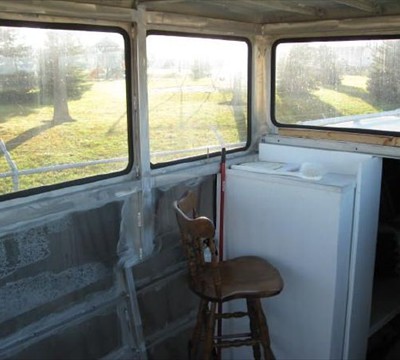

  • port side helm and mid-cabin area
  • looking aft from helm; engine just forward of aft window

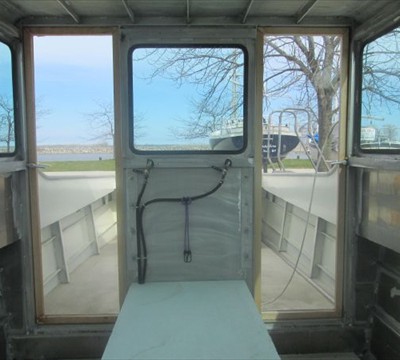

  • looking aft from mid-cabin
  • engine mounted into floor of mid-cabin

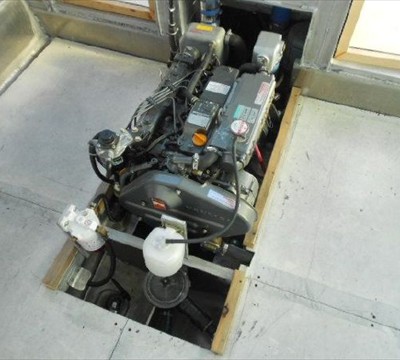

  • Yanmar 50 hp diesel
  • side view of engine

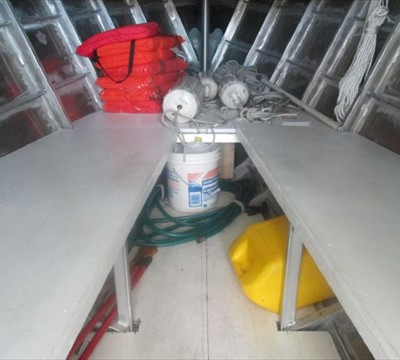

  • forward cabin

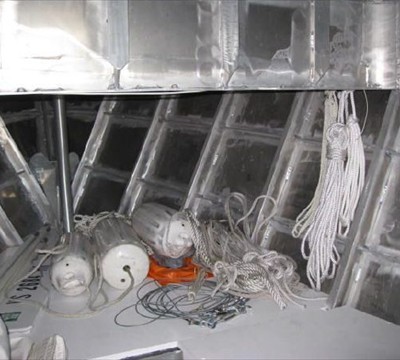

  • interior bow area

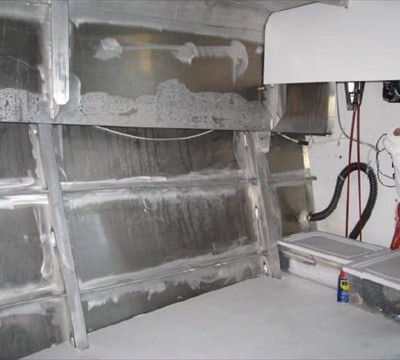

  • side wall of forward cabin
  • starboard aft view of forward cabin
  • port aft view of forward cabin

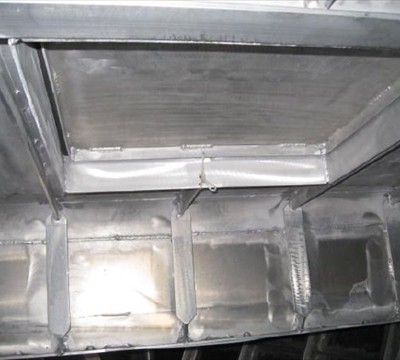

  • forward cabin looking up at hatch

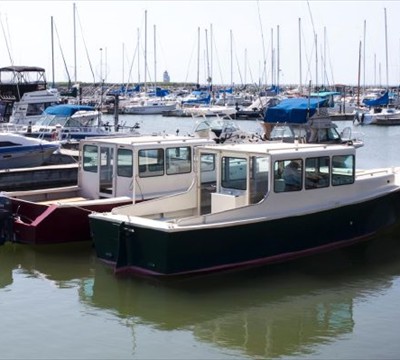

  • at dock with 2nd prototype

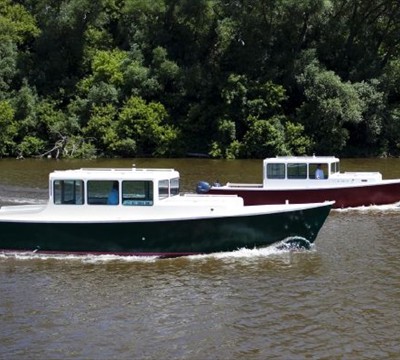

  • cruising with 2nd prototype

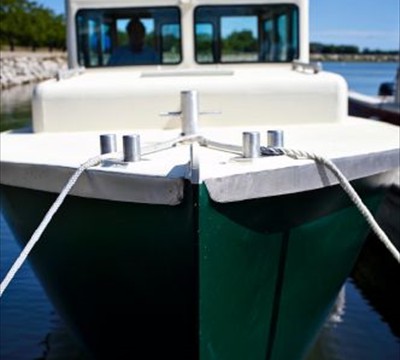

  • bow view

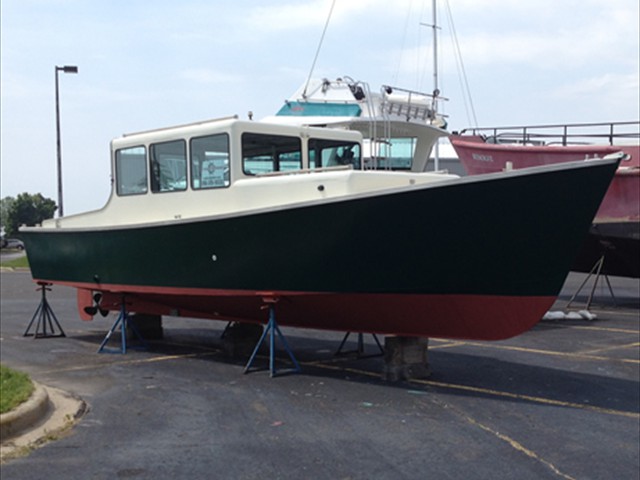

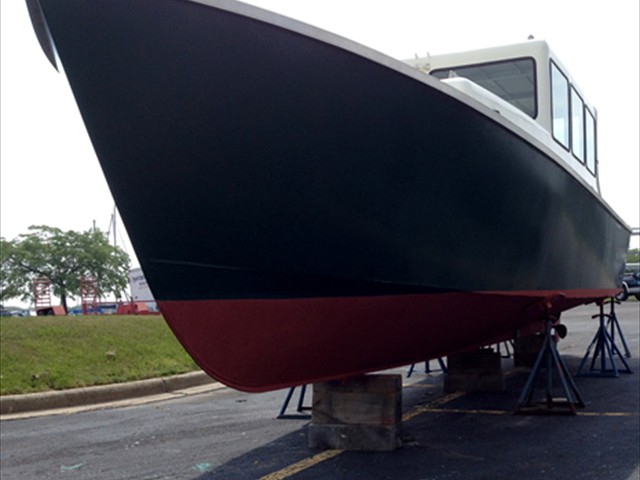

  • 2015 new bottom paint
  • 2015 new bottom paint
  • 2015 new bottom paint

Contact Trawlers Midwest for more details.
Buy new in-stock model or custom order.

920-894-2632 or trawlers@trawlers midwest.com
